智能伺服扭矩傳感器槍型扳手X2
伺服電機、自由編程、LED提示燈、錯誤提示、鎖附參數、簡易安裝
立即咨詢
技術參數
| 型號 | 扭力范圍 | 空載轉速 | 輸入電壓 | 重量 | 標準批頭 | |
| 槍型扳手 | Kgf.cm | N.m | ||||
| SD-NC100T-SB-X2 | 1-10 | 0.1-1 | 50-1000r.p.m | 30V | 650g | 1/4-Hex |

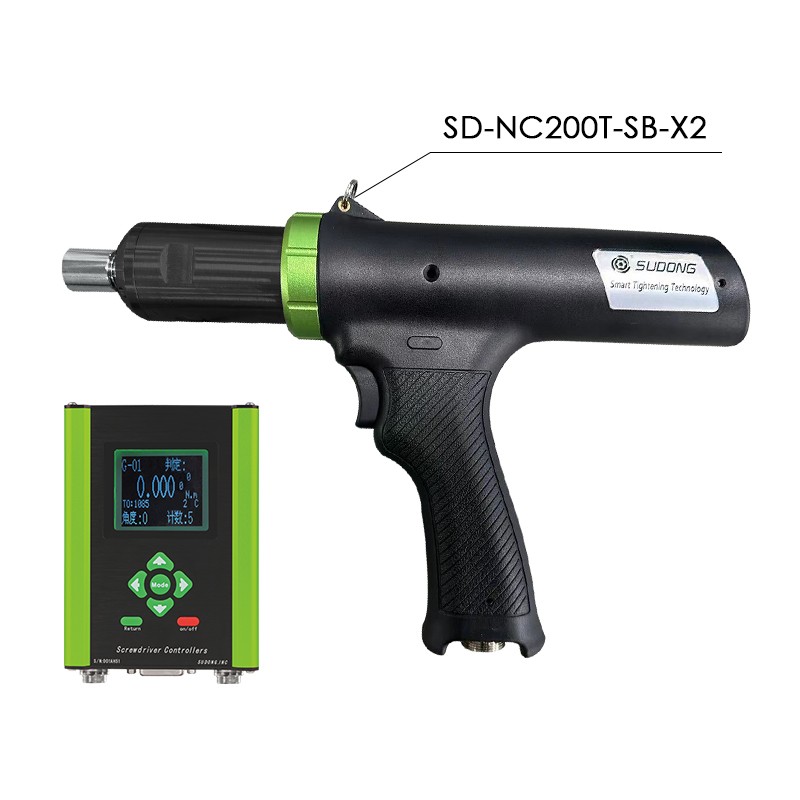

| SD-NC200T-SB-X2 | 1-20 | 0.1-2 | 50-1000r.p.m | 1/4-Hex | ||
| SD-NC350T-SB-X2 | 5-35 | 0.5-3.5 | 50-600r.p.m | 1/4-Hex | ||
| SD-NC500T-SB-X2 | 5-50 | 0.5-5 | 50-600r.p.m | 1/4-Hex | ||

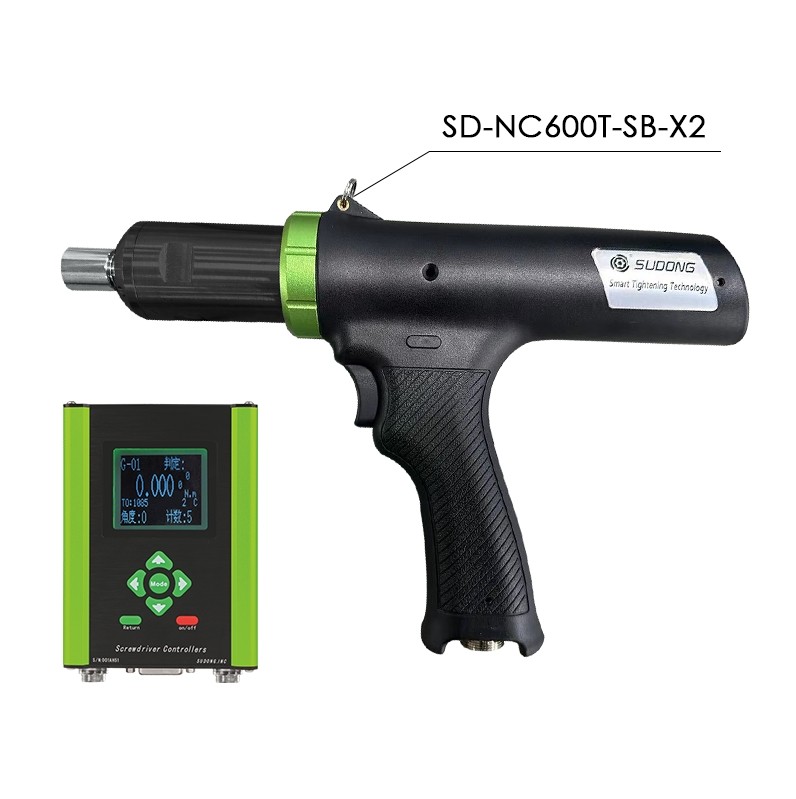

| SD-NC600T-SB-X2 | 10-60 | 1-6 | 50-650r.p.m | 1400g | 1/4-Hex | |

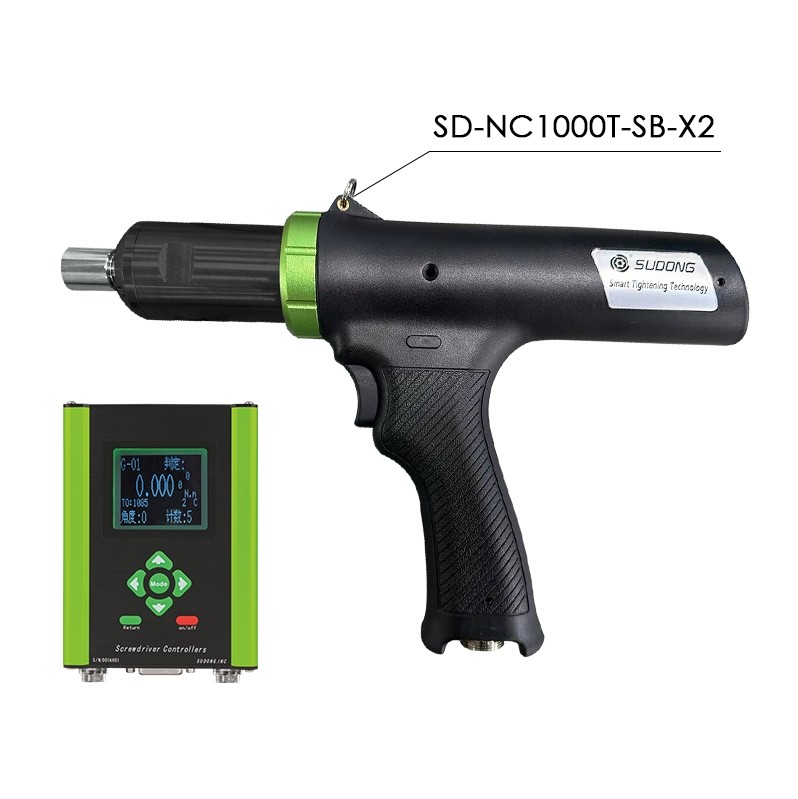

| SD-NC1000T-SB-X2 | 20-100 | 2-10 | 50-450r.p.m | 1/4-Hex | ||
| SD-NC1500T-SB-X2 | 30-150 | 3-15 | 50-300r.p.m | 1/4-Hex | ||
| SD-NC2500T-SB-X2 | 50-250 | 5-25 | 50-200r.p.m | 1500g | 1/4-Hex | |
| SD-NC4000T-SW-X2 | 90-400 | 9-40 | 50-130r.p.m | 3/8-Hex | ||
| SD-NC6500T-SW-X2 | 130-650 | 13-65 | 50-100r.p.m | 3/8-Hex | ||
可選扳手輸出頭按需定制 | ||||||
